Well it's time to put the Empenage on the back of the Fuselage. This took lots of head scratching, measuring and eyeballing before I ever drilled the first hole. Actually after it was all done, I think I got it right the first time.
|
|

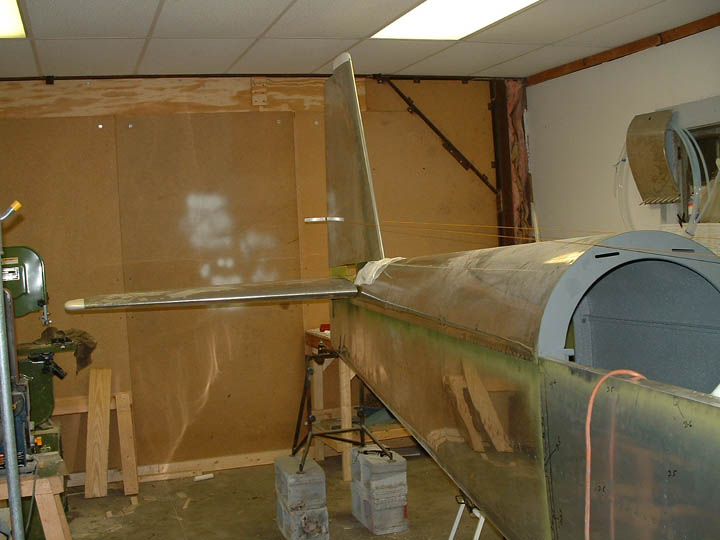

Well here goes. It the start of getting the tail centered and attached permanently. It was a task that took good measuring and better measuring and the measuring all over again to be sure it was right before measuring the final time to drill. |
|
|
Front attach plate for the vertical fin |
|
|

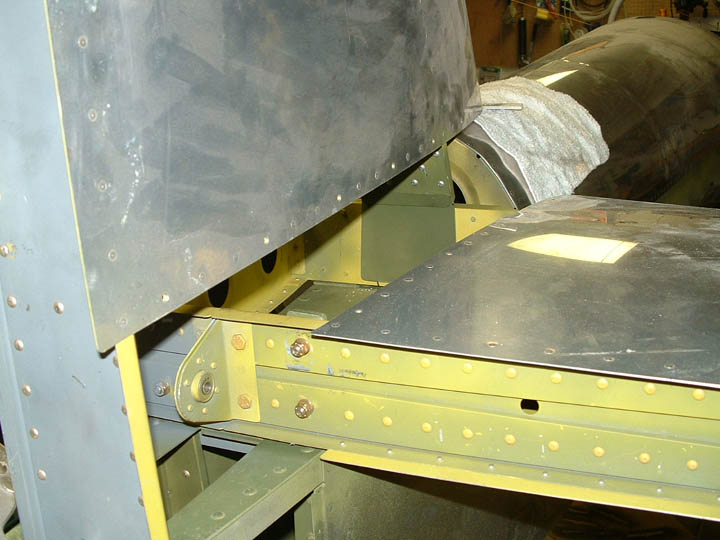

All bolted in place. Now that wasn't hard was it? |
|
|

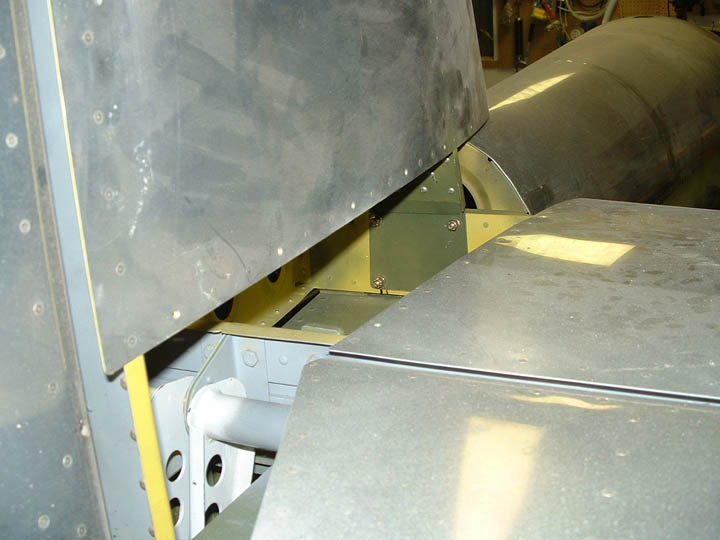

From the other side |
|
|

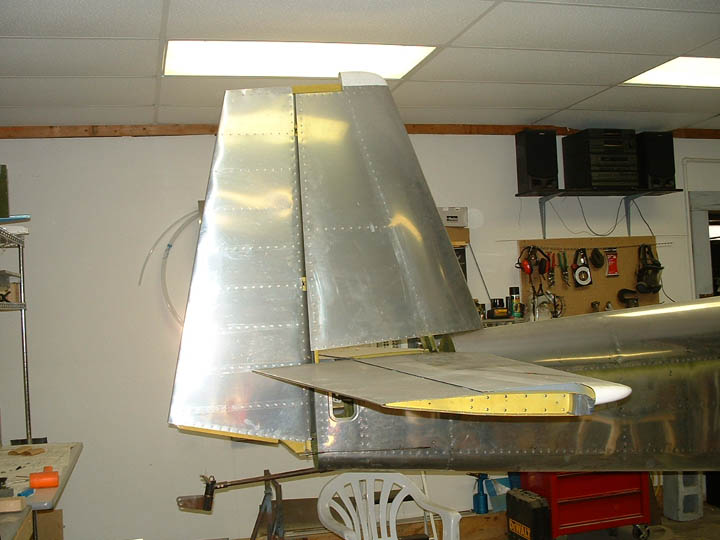

And it's a tail...............all attached now!! |
|
|

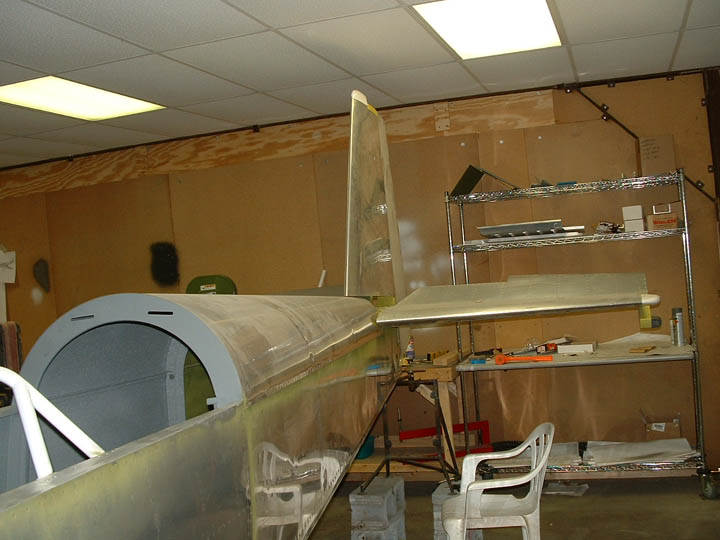

From the front |
|
|
Front other side |
|
|

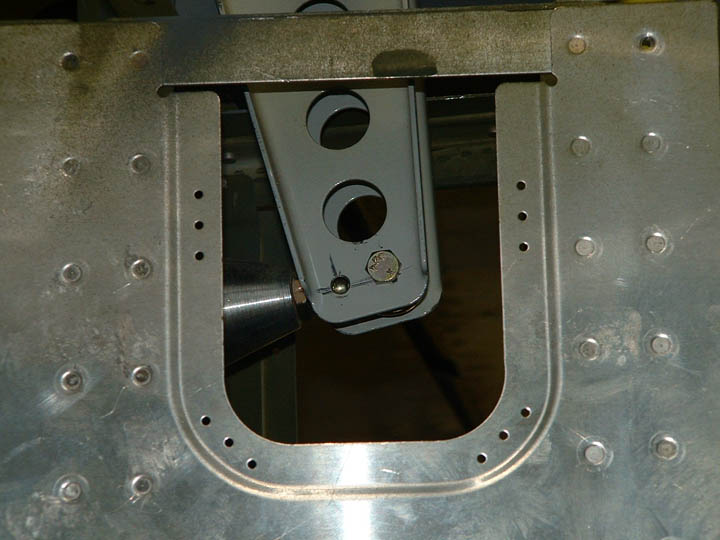

Pushrod attached to the elevators |
|
|

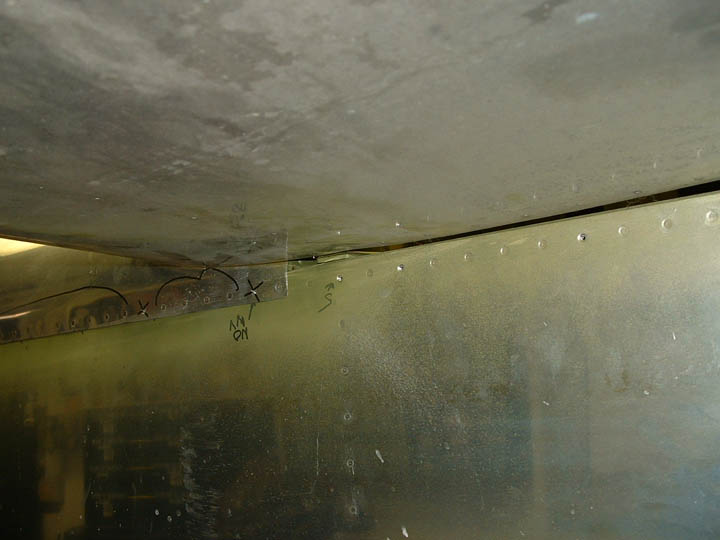

Underside of the horizontal stab |
|
|
I didn't like the placement of the plans called for attachment so I moved it back for a better stick placement. I don't think it will cause me any grief. |
|
|

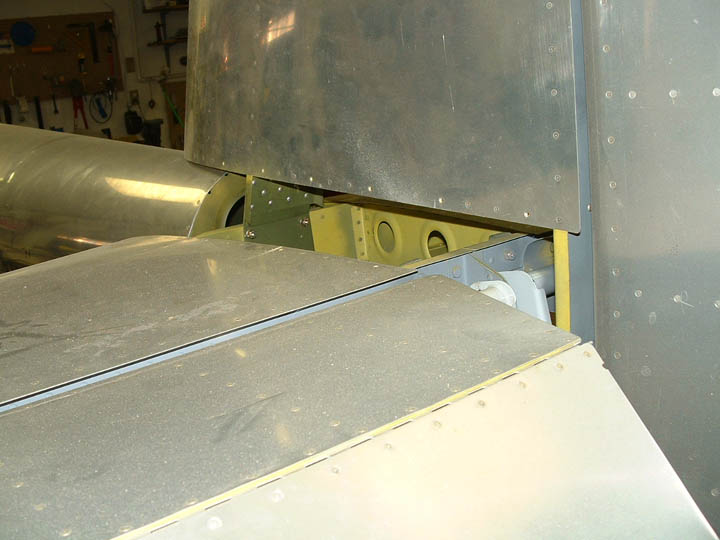

Clearance between the vertical fin and the rear turtledeck. |
