Aileron parts being
fitted together for final drilling and preparation prior to assembly |
|
|
|

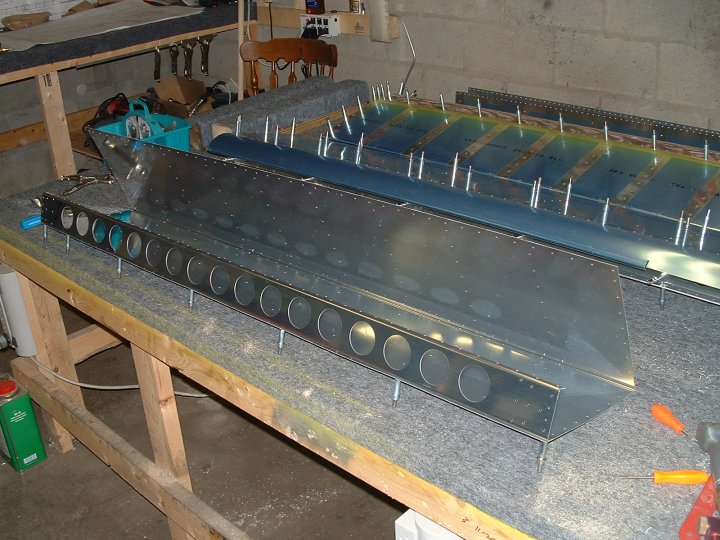

A shot of the aileron
spar with the counterbalance nose attached. |
|
|
|

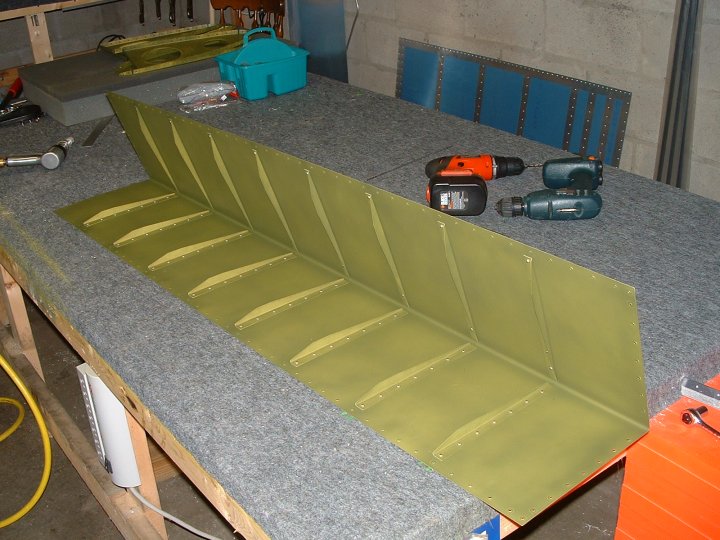

Aileron Skin with the
stiffeners attached, primed and ready for final assembly |
|
|
|

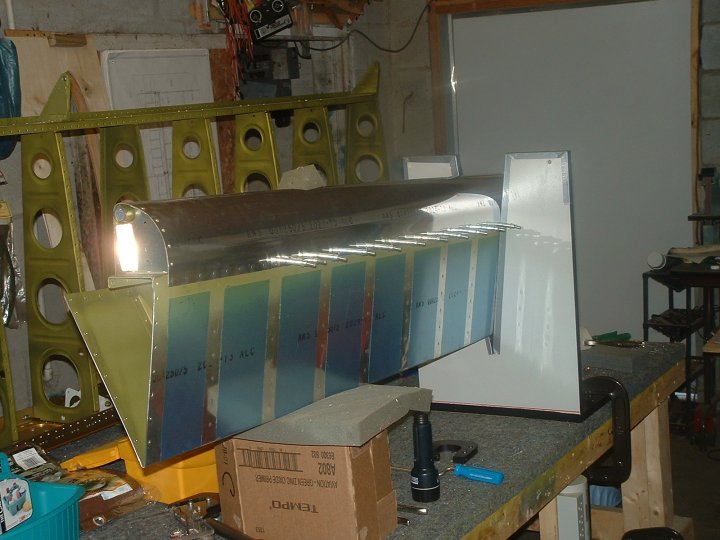

Everything is fitting
like it should and the aileron is finally ready for final riveting. I messed
up drilling the end ribs so Van's got a little more of my money |
|
|
|

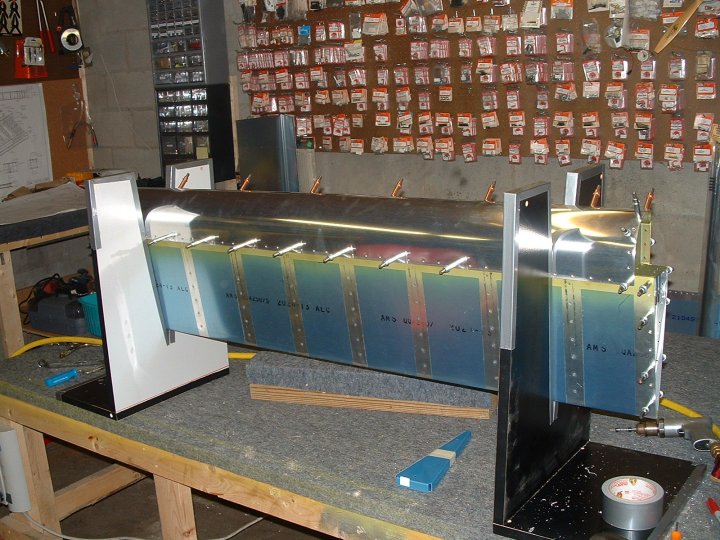

A different angle sitting
in the jig |
|
|
|
To rivet one of these
together, you have to be at least a little bit of a contortionist so that
all the different bends that has to be made in the arms can be accomplished.
It was fun.......to say the least! Now was that 2 or 3 rivets per drink?! |
|
|
|
|
|
|
