Main spar with all
platenuts in place for attaching the fuel tanks and access covers. There was
a LOT of countersinking done on the main spar. Due to the thickness there
was no way to dimple anything. |
|
|
|
Another view of the main spar. You will notice
the rear baffle for the fuel tank in position to allow for the correct
mounting of the Z brackets |
|
|
|

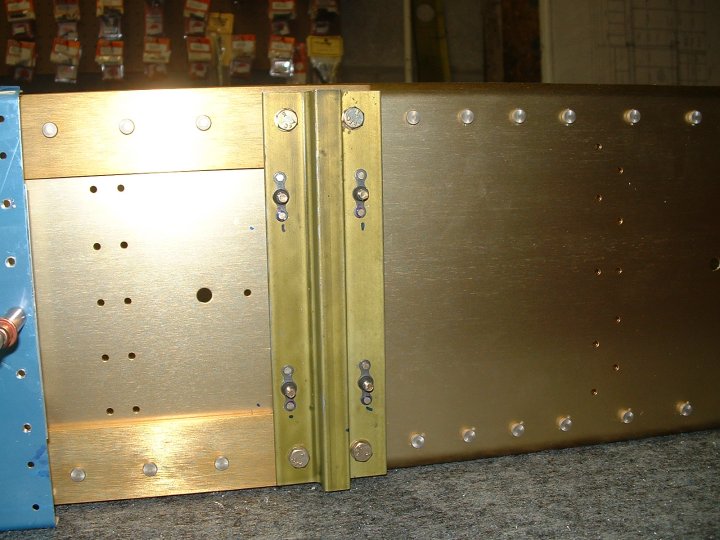

Tie down bracket attached to the main spar.
This also serves for the attaching plate for the aileron bellcrank shown a
few pictures down. |
|
|
|
Fuel tank mounting brackets being put into
place on the main spar. |
|
|
|

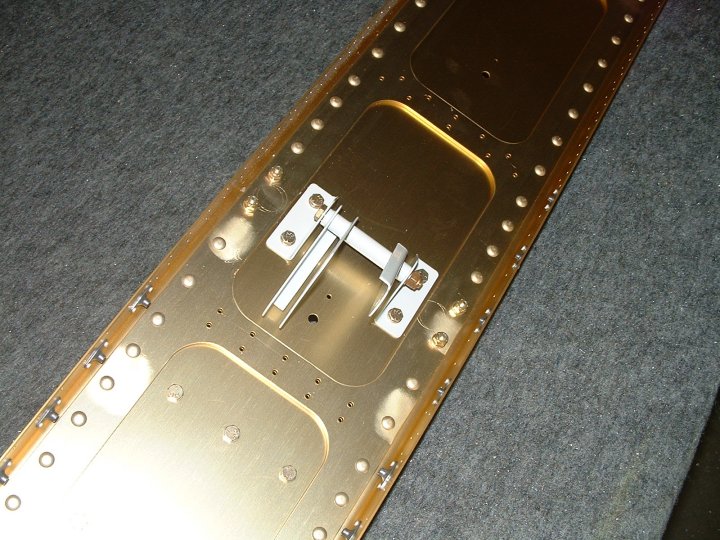

Aileron bellcrank in place. |
|
|
