Wing Frame up

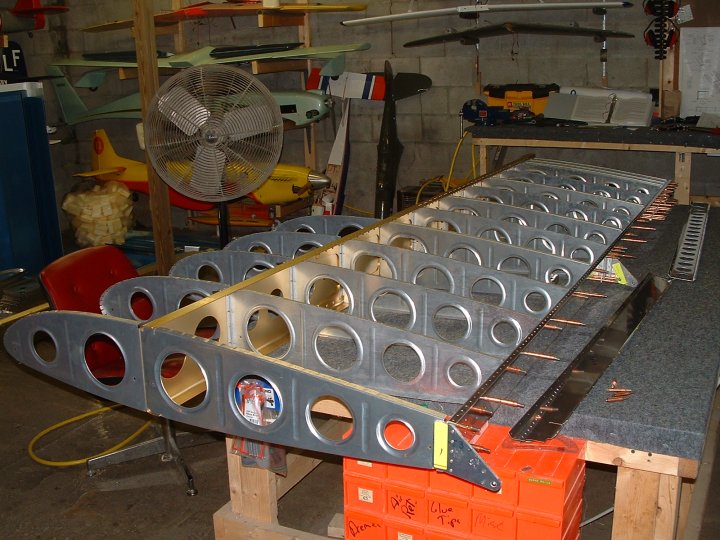

The wing skeleton was completely framed up on the table to allow for final drilling and proper fit. It was then disassembled for deburring, countersinking and priming. | |
Another shot prior to being primed. | |
After final prep work was done and the parts primed, the skeleton was reassembled and final riveted together. The skeleton was then mounted into a jig for final assembly | |
Looking the opposite way! | |

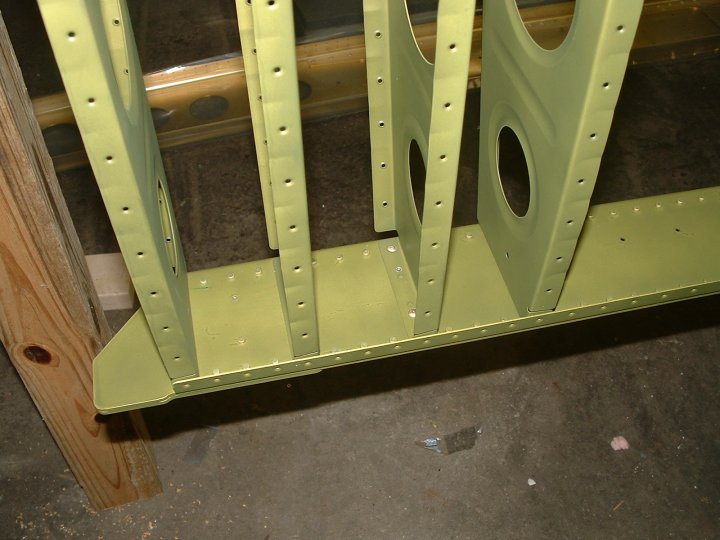

The root end of the wing showing the closely mounted ribs which will support the wing walking area for getting in and out. This area will have a double thickness of skin on it to prevent any damage as people climb in and out of the cockpit. | |
The doublers plate at the inner edge of the aileron. The hole shown is where the control rod will exit the rear of the wing and connect to the aileron. | |

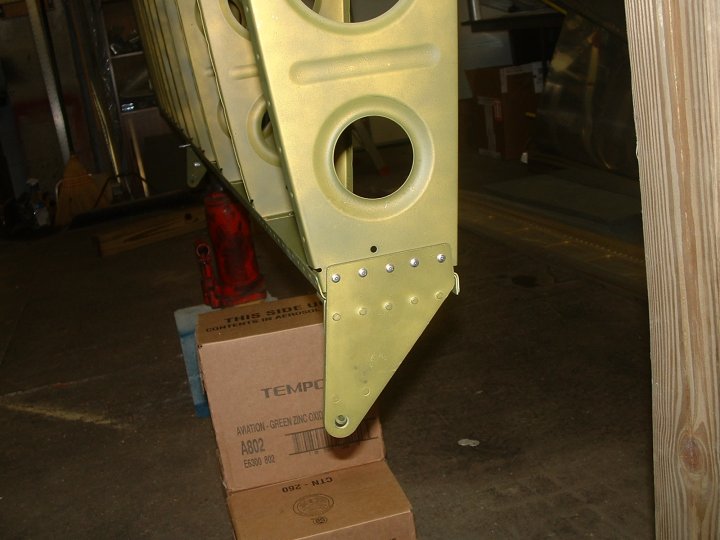

Aileron attaching bracket at the tip of the wing final riveted into place. | |

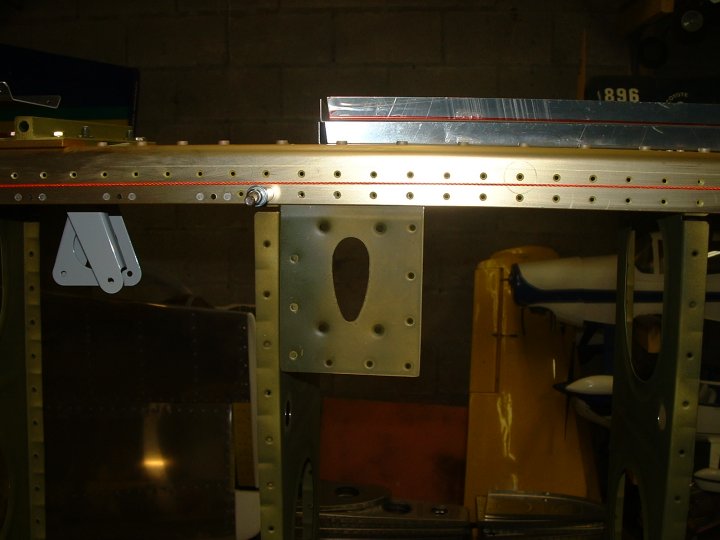

I opted to install a heated pitot tube from Gretz Aero. To do this I had to make a mounting plate and attack it to the main spar and the rib for support. The skin will also have to be cut for the mounting tube to pass through | |
Inside of the pitot tube plate showing attachment to the rib using a piece or .020 aluminum angle. | |
